Photon: Where is my Bandwidth Going?

I’ve recently been investigating some curious behaviour that has been going on on a server I administer. This is a VM hosted with  Mythic Beasts, and it hosts a variety of sites, several of which use WordPress (like this!) – the specific problem I’ve seen is a large bandwidth increase over a couple of months. The following chart demonstrates:

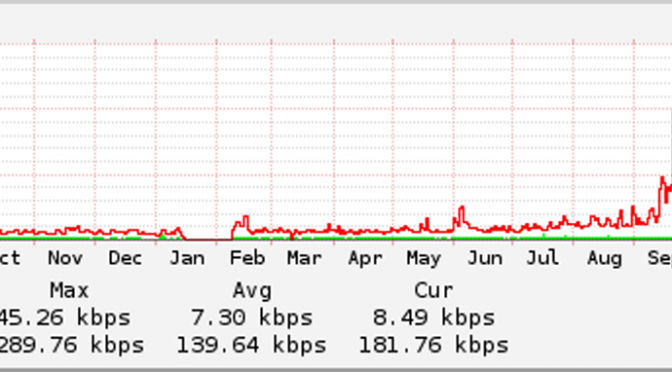

Yearly Bandwidth Usage Chart

Now, the usage levels are still well inside my allowed totals, but I decided to have a look – I know a couple of the sites are reasonably popular ones, and they could have had a surge in activity, but the figures are more interesting.

As it turned out, after totting up totals by vhost, the vast majority of the bandwidth was going on one site. In a 2 week period, 95% of the bandwidth was serving one vhost at about 6GB a day. More curiously, this vhost (running a fully patched WP instance) has of the order of 500 hits a day over this period.  While there are some wonderful images on this site, and several per post, there’s should be nowhere near this amount of data. What makes it more confusing is that Jetpack was installed, and had Photon enabled.

Photon is the free service from WordPress that allows serving of images from a content delivery network (CDN), which is designed to take load (really bandwidth as images are simple to serve) away from the source server. Having done a little digging in the logs, it turns out there were entries like this: - - [01/Nov/2015:03:40:11 +0000] 'GET /wp-content/uploads/2014/11/IMG_1667.jpg HTTP/1.1' 200 500600 '-' 'Photon/1.0' - - [01/Nov/2015:03:40:17 +0000] 'GET /wp-content/uploads/2014/11/IMG_1667.jpg HTTP/1.1' 200 500600 '-' 'Photon/1.0' - - [01/Nov/2015:03:40:20 +0000] 'GET /wp-content/uploads/2014/11/IMG_1667.jpg HTTP/1.1' 200 500600 '-' 'Photon/1.0'

<snip another 140 similar lines…> - - [01/Nov/2015:03:47:35 +0000] 'GET /wp-content/uploads/2014/11/IMG_1667.jpg HTTP/1.1' 200 500600 '-' 'Photon/1.0' - - [01/Nov/2015:03:47:38 +0000] 'GET /wp-content/uploads/2014/11/IMG_1667.jpg HTTP/1.1' 200 500600 '-' 'Photon/1.0'

So, 145 requests for the same file within 7 minutes – what on earth? CDN are supposed to cache to avoid rerequesting data like this. More confusing is that there just weren’t this number of page requests in this period – in fact there were only 18 requests for feeds or posts… Across 2 weeks in this single vhost, total traffic was 82GB, with 73GB of images being served to Photon alone – and there’s only 2GB of data on disc for the vhost, including code!

So, after raising a support call with Jetpack (and have to say the support staff were helpful and responsive here), I got a little way to working out what it was doing.

When Photon gets a request for a file it doesn’t have, it requests the full size image from the source blog, which is fine. Photon also does resizing/optimization of images when the image requested has relevant GET parameters (eg w, h, resize, etc) – here it does the same thing in that it re-requests the full size image and resizes it.

Though confirmed that this is the expected behaviour by the Devs, I think this is a design flaw. Photon already stores the images forever (if you want to change an image, you must change the filename – that’s documented) and it would make sense to retain the original and use this for resizing appropriately when it needs to. Even as is, you’d expect the images in use to get cached up and then be served from CDN so you should reasonably quickly build up all the sizes you need in cache.

So what about the 145 requests? Well, after being sent the logs by Jetpack support, it’s clear that there are a load of individual requests for the same image with different sizes, eg: - - - - [01/Nov/2015:03:40:39 +0000] GET /XXX/wp-content/uploads/2014/11/IMG_1667.jpg?zoom=2&resize=523%2C512 HTTP/1.1 <REFERER> - - - - [01/Nov/2015:03:40:42 +0000] GET /XXX/wp-content/uploads/2014/11/IMG_1667.jpg?zoom=2&resize=519%2C508 HTTP/1.1 <REFERER> - - - - [01/Nov/2015:03:40:45 +0000] GET /XXX/wp-content/uploads/2014/11/IMG_1667.jpg?zoom=2&resize=515%2C504 HTTP/1.1 <REFERER></code>

And so on, all the way down to a resize request with size 61 x 50px… So, this is expected behaviour, but (despite the referrer looking right) these image requests don’t appear to be from pages that are WP generated. I’m not sure really how and where these are being generated – are they bots, apps, scrapes, feeds? Hard to know, as I don’t have the full details, but it’s hugely inefficient once Photon starts dealing with those requests. This is by no means the worst – from the last 2 weeks:

# zgrep "Photon" site-access.log.* | grep "/wp-content/uploads/2015/08/imagename.jpg" | wc -l



So, my current approach is to stop serving images in this way for this site – I can’t block it entirely, since you need Photon to serve image grids, etc, but after a day it looks to be going in the right direction (see the flat, non peaky graph in the last day):

Weekly Bandwidth Usage
I’d be interested if anyone else has seen similar behaviour – please leave comments!

Disappointingly, Jetpack say there’s no plans to change this behaviour, so for me this rules out its use on this size of site. It clearly does save bandwidth for normal requests, but it’s had a negative impact here – I could see it working for much larger image heavy sites, even with the frequent re-requests, but it’s just not working here.


EDIT 18-Nov-2015:

Point proved? (There was a popular post today which accounts for the late blip!)

Bandwidth - 18/11/2015



Eclipse Calculations using Python

On 20th March there is a deep partial solar eclipse over the  UK which is total over the Faroe Islands and Svalbard. I set about trying to determine the time of maximum eclipse, and percentage eclipsed at a given location.

I used the pyephem module which is a Python implementation of the numerical routines that are behind the excellent Xephem. The module will allow a user to calculate the positions of astronomical objects (eg Sun, Moon, etc) from a given location at a given time. Using the positions of these objects it’s possible to determine the separation of the centres of these objects.

To work out the percentage eclipse at that time, I used the formula on the Wolfram Mathworld page on “Lunes” (author: Weisstein, Eric W). A “Lune” is the “plane figure bounded by two circular arcs of unequal radii, i.e., a crescent.” which exactly describes the visible surface of the sun during an eclipse.

With the area of the lune calculated, it’s trivial to work out the percent eclipse at that time – and by looping over time, it’s possible to get a list of lists to search for a maximum.

The code can be downloaded using this link:

The result I get (using the location of the Science Oxford setup on 20th March – the SBS in Oxford, UK) is as follows:

Max Eclipse occurs at: 2015-03-20  09:30:11 GMT
Max percentage eclipse: 85.86
First contact: 08:24:21 GMT
Last contact: 10:40:04 GMT

All we need now is some decent weather…

The featured image here is an H-Alpha filtered frame taken by me on 3rd Oct 2005 from Denia, Spain, during the early phases of an annular eclipse.

Debian Wheezy, Apache+FCGI+PHP; changes to /etc/mime.types and php5-cgi

Here’s a potentially useful note for anyone upgrading to Debian Wheezy on a system that uses Apache2 + FCGI + PHP. If you’ve configured it to run using one of several guides (like these:, then you might well be bitten by a similar issue to that reported in

Previously, one could define config such as the following in an apache2 conf.d file:

AddType application/x-httpd-php .php

AddHandler php-fcgi .php
Action php-fcgi /fcgi-bin/php5-fcgi

<Location /fcgi-bin/>
SetHandler fcgid-script
Options +ExecCGI

This would instruct Apache to use the handler “php-fcgi” to process .php files – with the “Action” referencing a wrapper held at /fcgi-bin/php5-fcgi (suitably aliased in the vhost). This all looks well and good and doesn’t appear to change between squeeze and wheezy (Apache is still at 2.2).

However, if you do a straight upgrade, you may find that your server starts serving out php files in plaintext (not only is your site down, but it’s a security risk as well with potential connection details listed in config files). In Wheezy, the php MIME types have disappeared from /etc/mime.types –  php5-cgi now includes two files (in /etc/apache2/mods-available) to try and correct the missing MIME type definitions. With php5-cgi enabled in the webserver, the config as follows is included:

<FilesMatch ".+\.ph(p[345]?|t|tml)$">
SetHandler application/x-httpd-php

This sets the handler appropriately. With this set, Apache serves out the file as text, instead of using the relevant action “php-fcgi”  – the FilesMatch directive overriding the old config. The fix is reasonably simple – comment out the AddType and AddHandler in the conf.d file and change the Action line so you have:

Action application/x-httpd-php /fcgi-bin/php5-fcgi

In the case you just want sidewide php5-cgi with no suexec, then you don’t even need the above – in php5-cgi.conf in mods-available, just uncomment the last section of the php5-cgi.conf file – this has a similar “Action” directive to that above. I keep the above as I use suExec to run the fcgi processes under individual accounts (you’re unable to call outside of the suexec root, and it’s easy to repoint the fcgi-bin location appropriately in each virtualhost).

(Note that this type config appears also to be not vulnerable to execution of files of the type evil.php.jpg thanks to the FilesMatch directive in the module .conf)


Featured image adapted from work by W. Rebel (Wikimedia Commons)

Testing, Fixing and Costs

For those of you who don’t know me, you almost certainly won’t know what I do. Of course, there are probably a load of people who do know me, who still don’t know what I do (and, no, “Nothing” is not the answer). I work as a software tester and I have done for the last 7+ years now in a few different places.

cost_curve1Generally, this job involves a fair bit of evangalism – sometimes it’s quite successful (eg Promoting the use of Bugzilla as a defect tracking tool). One of my favourite diagrams is that shown in this post – I like this graph a lot. It is a graph showing the rough relationship between the cost of fixing a bug or defect, and what stage of the development process that bug or defect was found.

It’s fairly clear from the graph that, the later you realise there is a problem, the more it costs you to go back and unravel what is wrong and sort it. The reasons are fairly clear – if you find a problem at a later stage, you often have to go right back to the beginning of the process of development, testing and so on.

Some notes I like to make relating to this:

  1. Even if you are already employed by a company, you are not “free”. Having someone fix a problem, and work repeated costs money – “we already pay their wages” is not an argument! Sheffield Teaching Hospitals Trust – take heed (Quote from the Reg article: The trust argued that the consequences of its decision making had not cost public money, “just time and effort by the IT teams”.).
  2. Accurate. timely requirements are essential. Finding out that you have mis-specified something as it is nearing the release date is a Bad Thing™.
  3. Not having requirements before coding is asking for even more trouble.
  4. Changing requirements part way through the process (or, worse, finding out during testing that your requirements were duff!) is much along the lines of 2 and 3 with similar outcomes (moving goalposts anyone?).
  5. Doing unit testing is much better than sending code straight to the testers – it saves a lot of heartache on both sides…
  6. Actually having enough time to perform a sufficient level of testing can save you an enormous amount of hassle and cost.
  7. Squishing bugs as you go at the earliest possible opportunity is much advised – multiple bugs can quickly make a system unusable and costly to fix up. (There is another similarly shaped graph – see it as The Law Of Bugterial Infection)
  8. No one is perfect… not even me 😉

Feel free to use the graph above if you want and evangelise away…

BT/Yahoo? Slow Email?

UPDATE: Since writing this article, BT have moved off the Yahoo platform (see:– I’m unsure if the same issue is apparent for BT users, but the same issue exists for Yahoo as far as I know.

If you are a BT or Yahoo email user, then you may notice occasionally that your email takes an age to arrive. Sometimes you may even discover that an email someone sent you you has never arrived. If you experience this, here’s a bit of an explanation as to why this may be happening…

Continue reading BT/Yahoo? Slow Email?
